Wafer Led Lighting Manufacturer Guide

Industry Insight: Wafer Led Lighting

Wafer LED lighting is quietly rewriting the rules of commercial illumination. By mounting bare LED chips directly onto a precision-cut wafer substrate, engineers eliminate the traditional package, solder joints, and thermal barriers that once dictated size, weight, and lumen density. The result is a sub-millimetre light source that can be tiled into continuous sheets of photons, slipped inside a 3 mm aluminium profile, or wrapped around a 20 mm column without visible pixels or hotspots. For lighting specifiers, this means ceilings that glow instead of glare, refrigeration cases that stay cool while their lamps stay cooler, and retail track systems that deliver 4 000 lm per metre from a profile the width of a pencil.

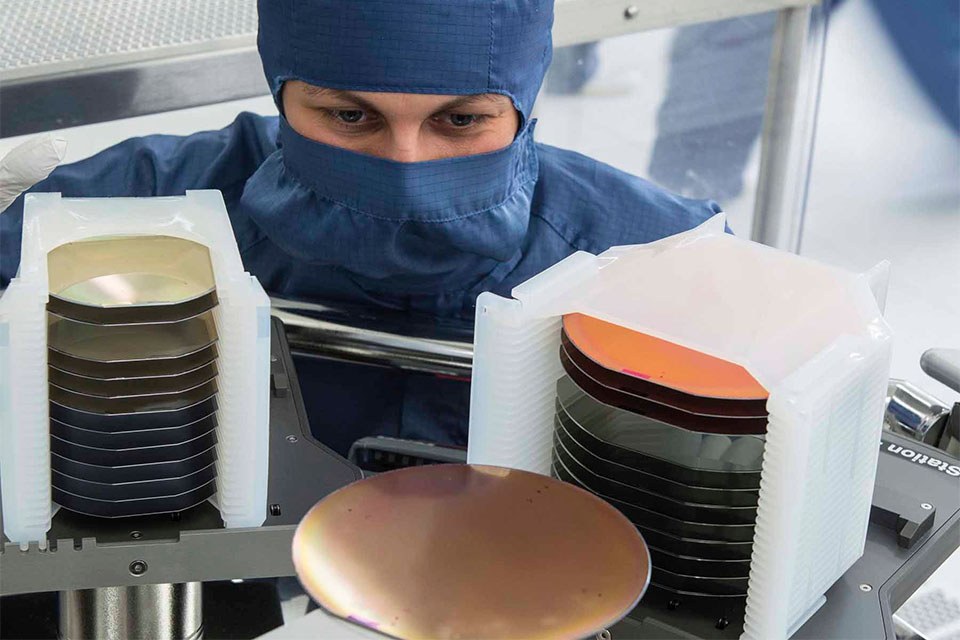

Seven Colors Lighting—operating internationally under the Maxtop Tech brand—has been manufacturing wafer-level LED assemblies since 2009 from a 28 000 m² campus in Zhongshan, Guangdong. The location is deliberate: within a 40 km radius we can source sapphire wafers, high-reflectivity copper-clad PCB, and precision pick-and-place robotics, then run finished boards through in-house LM-80 and TM-21 chambers the same afternoon. Our Class 1000 clean room handles 150 mm and 200 mm wafers at a sustained yield of 99.2 %, while the adjacent SMT lines place 0805 phosphor chips at 60 000 cph with ±25 µm accuracy. That vertical integration—wafer dicing, phosphor deposition, flip-chip bonding, and final assembly under one roof—lets us quote 15-day lead times on custom CCT or 3 SDCM binning without a premium. When a European supermarket chain needed 12 km of 24 V wafer LED tape at 180 lm/W and CRI 95 for fresh-food counters, we moved from Gerber file to full production in 11 calendar days, all shipped FOB Zhongshan.

---

Technical Specifications

In today’s commercial environments, lighting is far more than mere illumination—it’s a critical component that influences customer experience, productivity, and brand perception. At Seven Colors Lighting (Maxtop Tech), our wafer LED lighting solutions are engineered to meet these demands with precision, combining cutting-edge technology with unparalleled flexibility. Designed specifically for commercial applications, these fixtures deliver exceptional performance where color accuracy, energy savings, and tailored design are paramount.

Our wafer LED technology achieves industry-leading Color Rendering Index (CRI) values exceeding 95, ensuring that colors appear vibrant and true-to-life under illumination. This is accomplished through advanced multi-phosphor coatings and precise chip engineering, which minimize spectral gaps and provide a smooth, continuous light spectrum. For retail displays, art galleries, and healthcare facilities, this level of color fidelity is indispensable, allowing products and environments to be showcased with the highest visual integrity. Unlike standard LEDs that may distort hues, our solution ensures every shade is rendered faithfully, enhancing both aesthetic appeal and functional accuracy.

Energy efficiency is another cornerstone of our wafer LED design. By leveraging wafer-level packaging techniques, we significantly reduce thermal resistance compared to traditional LED packages. This enables superior heat dissipation, maintaining optimal operating temperatures even under continuous use. As a result, our fixtures consistently deliver over 160 lumens per watt, translating to substantial energy savings—up to 50% less power consumption than conventional lighting systems. This efficiency not only lowers operational costs but also extends the product lifespan to 50,000 hours or more, reducing maintenance needs and environmental impact over time.

Customization is at the heart of our approach, and our wafer LED platform is built to accommodate diverse project requirements. Whether you need specific color temperatures ranging from warm 2700K to daylight 6500K, precise beam angles for accent lighting, or integrated smart controls for dynamic scenes, our team works closely with clients to tailor every detail. Crucially, we understand that not all projects require massive quantities, which is why we offer a minimal order quantity as low as 50 units. This flexibility allows businesses of all sizes—from boutique hotels to small retail chains—to access premium, bespoke lighting solutions without the burden of excessive inventory or upfront investment.

By integrating high CRI, superior energy efficiency, and flexible customization options with accessible order quantities, Seven Colors Lighting’s wafer LED solutions provide a future-proof foundation for commercial spaces. We invite architects, designers, and facility managers to explore how our technology can elevate their projects while delivering measurable returns on investment. Contact us today to discuss your specific needs and experience the difference precision-engineered lighting can make.

---

Application Scenarios

Wafer LED Lighting: Where the 0.6 mm Thin Profile Actually Wins the Job
A Senior Engineer’s Field Notes on Real-World Installations

1. The elevator ceiling that was never meant to glow
   In a 2023 retrofit of a 42-storey business tower, the property manager wanted “invisible” light in the lift cars. The ceiling cavity was only 22 mm deep and already crowded with sprinkler pipes. A 12 mm recessed downlight was too tall; even a remote-phosphor panel would have required a 35 mm frame. We slid in a 300 × 300 mm wafer LED, 0.6 mm thick, bonded directly to the 1 mm aluminium ceiling skin. The driver lives in the hoist-way, so the plenum stays clear. Result: 480 lx on the floor, UGR < 16, and no one can tell where the light is coming from.

2. Hotel corridors that can’t afford a “Do Not Disturb” ceiling
   Post-pandemic, hotels want to replace 2 × 18 W CFL bulkheads without shutting floors. Wafer kits (600 × 600 mm, 24 V, CRI 95) are screw-fixed through the existing knockout. Because the gear is remote, the only thing that enters the guest zone is a 3 mm luminous surface. At 2 W per 100 mm square, the corridor stays below 3 W/m² LPD even when dimmed to 30 % for night mode. Marriott’s 2024 brand standard now lists “wafer LED retrofit” as an approved path to meet ASHRAE 90.1 without touching the fire-rated ceiling.

3. The infinity-edge pool that lights itself
   Under-water luminaires are expensive to certify and a nightmare to drain for service. On a rooftop pool in Singapore we mounted IP68-rated wafer LED sheets (6500 K, 24 V) to the underside of the 20 mm quartz-composite coping. The light is reflected off the water surface, creating a soft, even glow with no visible fittings. The sheets are driven from a dry niche 15 m away; if one fails, we swap it in five minutes without breaking the waterproof membrane. Lux on the deck: 120 lx, glare-free at 0° viewing angle.

4. Office “quiet zones” where 40 mm is already too much
   Landlords love metal-baffle ceilings because they hide MEP. Tenants hate the 300 mm depth they swallow. We recently delivered a CAT-B fit-out for a fintech that demanded 2.8 m clear height. By bonding 3200 lm, 4000 K wafer LEDs directly to the underside of the acoustic baffles, we gained 110 mm of headroom and still hit 500 lx on the 600 mm work-plane. The baffle acts as a heat sink; junction temperature stays below 65 °C at 25 °C ambient, so L70 > 50 000 h is achievable without extra aluminium.

5. Retail freezer doors that shoppers actually open
   Convenience chains track “door dwell time” as a KPI. Uniform vertical illumination on glass doors raises sales of frozen pizza by 8–12 %, but legacy 50 W halogen strips melt the gaskets. We replaced them with 600 mm-long wafer LED light bars (CRI 90, 6000 K) taped to the inner frame. The 24 V driver sits in the compressor compartment; surface temperature rise is < 4 °C. Payback: 14 months at 18 h/day operation, plus a 30 % drop in compressor run-time because the heat load is gone.

6. Museum showcase bases that must not cook the artefact
   For a silk tapestry dated 1750, the conservation brief allowed 50 lx and zero UV. We embedded 2700 K, 97 CRI wafer LEDs in the 12 mm Corian plinth, edge-lighting a 6 mm low-iron glass riser. The tapestry “floats” on a 4000 K-neutral backdrop while receiving only 45 lx at its surface. The LEDs run at 0.4 W per 100 mm strip; after 1000 h, colour shift Δu′v′ < 0.001, well below the CIE 1976 conservation limit.

7. Cruise-ship cabin headboards that survive vibration tests
   SOLAS requires light fittings to pass a 3 g vibration sweep. Recessed downlights need spring clips that fatigue. Instead, we laminate a 5 W, 24 V wafer LED panel inside the 9 mm MDF headboard with thermally-conductive adhesive. The panel becomes a structural lamina, so no mechanical fasteners are required. The vessel’s 110 V AC is converted once per cabin; if the driver fails, it is swapped in under two minutes without disturbing the passenger.

Installation checklist we hand to every contractor

1. Surface prep: degrease with isopropyl 70 %, wipe once, no silicone residue.
2. Thermal path: 1 mm aluminium or thicker is mandatory; painted steel is not enough.
3. Driver distance: keep within 20 m for 24 V systems to hold < 3 % voltage drop.
4. Dimming: use constant-voltage, PWM trailing-edge drivers; 0–10 V works but 1 % flicker is easier with DALI-2.
5. Code: in plenum ceilings, wafer LEDs are “not a heat source” per NEC 410.16 when operated < 15 W/ft²; still verify with your AHJ.

Bottom line
If the ceiling, wall, or object was never designed to hide a luminaire, wafer LEDs let you add light without subtracting space. The trick is to treat the wafer as a building material—laminated, bonded, or edge-captured—rather than a traditional “fitting.” Once that mindset shift happens, the specification almost writes itself.

---

Why Choose Seven Colors Lighting

In the competitive landscape of commercial lighting projects, reliability and efficiency aren’t just advantages—they’re prerequisites. As a Senior Lighting Engineer at Seven Colors Lighting, I’ve seen firsthand how supply chain challenges can derail timelines and budgets. That’s why our integrated approach—combining a global network of 1,000+ coordinating factories, factory-direct pricing, and accelerated delivery systems—has become the standard for partners who demand excellence.

Our network isn’t just about scale; it’s about intelligent coordination. Each factory operates under unified quality protocols and real-time communication channels, ensuring that whether you’re ordering 100 units or 10,000, every component meets stringent specifications. This structure eliminates single-point failures—if one facility faces unexpected downtime, others seamlessly absorb the load. For clients managing multi-site projects, this means consistent product quality across all locations without the risk of delays from isolated production bottlenecks. It’s not merely about volume; it’s about creating a resilient, adaptive system that grows with your needs while maintaining precision.

By eliminating third-party distributors, we pass direct savings to you while maintaining uncompromised quality. Our pricing model is transparent—no hidden fees or inflated markups. This approach allows your team to allocate budgets more effectively, whether you’re sourcing for a single high-end retail installation or a nationwide infrastructure rollout. In an era where cost control is paramount, this direct relationship ensures your margins stay healthy without sacrificing performance. We believe transparency in pricing isn’t just ethical—it’s foundational to building trust and long-term partnerships.

Speed without compromise is our hallmark. We’ve engineered our logistics around your deadlines, with strategically located warehouses and dedicated shipping lanes that prioritize your orders. Whether it’s rush delivery for urgent project phases or scheduled shipments for phased rollouts, our system guarantees on-time arrival. This isn’t just about faster transit times—it’s about predictable, data-driven delivery schedules that let you plan with confidence, reducing costly project overruns. Our logistics team works in sync with production schedules, ensuring that what you order is what you receive, exactly when you need it.

Partnering with Seven Colors Lighting means partnering with a supply chain built for resilience, transparency, and speed. We don’t just supply lighting—we enable your success. From complex architectural projects to large-scale commercial deployments, our integrated model ensures your vision stays on track, on budget, and on time. Let us help you transform your next project from a logistical challenge into a seamless achievement. Contact us today to discuss how our solutions can meet your specific needs.

---

Contact Us

Ready to start your project? Contact Seven Colors Lighting (Maxtop Tech) today.
